Grants Management - Request Additional Documents fails

kotteswaran

Hi,

I was trying with the Request Documents Activity of Grants Management,When Mgr1/Mgr2/mgr3 attempts to seek additional documents from the applicant,the applicant doesn't receive Email regarding Additional Documents required by Mgr,

But in case of any Deny or Notification, Applicant receives Email with specific reason given by Mgr but not in the case of Request Documents Activity.

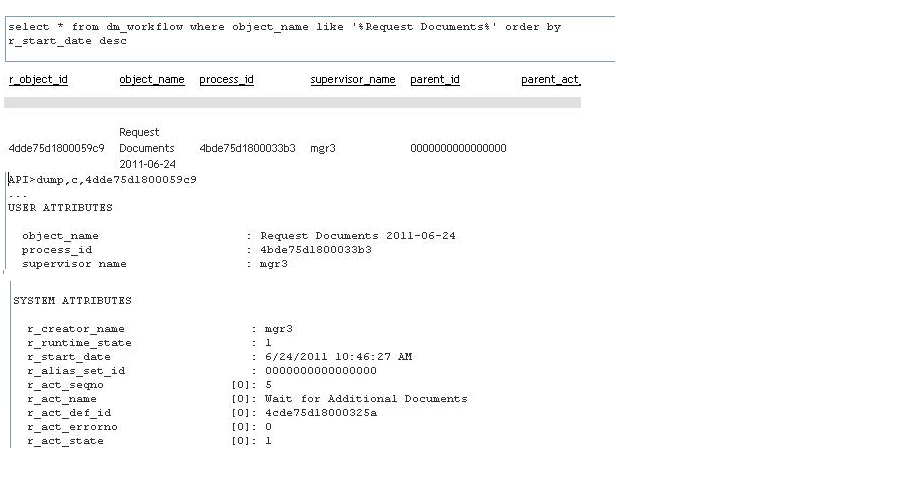

Request Documents.bmp

Hope,I could see from the post you have completed this activity without any issues,

Kindly assist me to proceed further and i owe to your needful help,

Thanks,


Find more posts tagged with

Comments

Tord

Hi Kotteswaran,

Please don't hijack an existing thread with another problem, instead I suggest you start a new thread. I'm branching this thread now creating a new thread with your issue for you.

Why does the Request Documents Activity fail, i.e. what error message do you get?

Can you run it through the debugger?

Can you post the configurations of both the SMTP activity that fails and the one that succeeds?

Thanks

--Tord

kotteswaran

Hi Tord,

Sorry to intervene in Existing Thread and extenxive thanks for creating new thread.

Why does the Request Documents Activity fail, i.e. what error message do you get?

I could see the following error in logs,

ERROR [http-0.0.0.0-9080-5] [com.documentum.mthdservlet.DoMethod] - Exception invoking com.documentum.bpm.services.BPSIntegrationMethod.
java.lang.NullPointerException

at java.io.PrintWriter.write(PrintWriter.java:429)

at com.documentum.mthdservlet.Utils.writeString(Unknown Source)
at com.documentum.mthdservlet.AMethodRunner.writeStatus(Unknown Source)
at com.documentum.mthdservlet.AMethodRunner.runAndReturnStatus(Unknown Source)
at com.documentum.mthdservlet.DoMethod.invokeMethod(Unknown Source)
at com.documentum.mthdservlet.DoMethod.doPost(Unknown Source)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:637)
at javax.servlet.http.HttpServlet.service(HttpServlet.java:717)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:290)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
at org.jboss.web.tomcat.filters.ReplyHeaderFilter.doFilter(ReplyHeaderFilter.java:96)
at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:235)
at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)
at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:230)
at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:173)
at org.jboss.web.tomcat.security.SecurityAssociationValve.invoke(SecurityAssociationValve.java:182)
at org.jboss.web.tomcat.security.JaccContextValve.invoke(JaccContextValve.java:84)
at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:128)
at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:104)
at org.jboss.web.tomcat.service.jca.CachedConnectionValve.invoke(CachedConnectionValve.java:157)
at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:109)
at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:241)
at org.apache.coyote.http11.Http11Processor.process(Http11Processor.java:844)
at org.apache.coyote.http11.Http11Protocol$Http11ConnectionHandler.process(Http11Protocol.java:583)
at org.apache.tomcat.util.net.JIoEndpoint$Worker.run(JIoEndpoint.java:447)
at java.lang.Thread.run(Thread.java:619)

Can you run it through the debugger?

I could run with debugger and I am able to see where it got stopped and i have shown the activity and also the console log in attachment.

Can you post the configurations of both the SMTP activity that fails and the one that succeeds?

If am not wrong,Hope you are asking me the activity where it gets failed

Regarding this i have attached the image file,

if your required information differs from this,please clarify me.

Kindly assist on these issues

Thanks,

Kotteswaran.

Tord

Hi again,

The activity fails because the recipient is null. Which you can see on these line in the log:

DEBUG com.documentum.bps.email.outbound.runtime.SMTPEmalMsgCreationRulesProcessor - Function: Copy

DEBUG com.documentum.bps.email.outbound.runtime.SMTPEmalMsgCreationRulesProcessor - Using From Rules:

DEBUG com.documentum.bps.email.outbound.runtime.SMTPEmalMsgCreationRulesProcessor - /Process Data/Variables/ReceiveData/grant_email_request/[1,S]ToEmailAddress,

DEBUG com.documentum.bps.email.outbound.runtime.SMTPEmalMsgCreationRulesProcessor - To Rule:

DEBUG com.documentum.bps.email.outbound.runtime.SMTPEmalMsgCreationRulesProcessor - /EMailMessage/To[0]

DEBUG com.documentum.bps.email.outbound.runtime.SMTPEmalMsgCreationRulesProcessor - From Parameters:

DEBUG com.documentum.bps.email.outbound.runtime.SMTPEmalMsgCreationRulesProcessor - null

DEBUG com.documentum.bps.email.outbound.runtime.SMTPEmalMsgCreationRulesProcessor - To Parameter: null

Go in to ProcessBuilder. Click the debugger and fill in data as below.

Does the activity still fail?

Hope it helps

Thanks

--Tord

kotteswaran

Hi Tord,

I have filled the recepient details and able to proceed with that activity from debugger with manual initiate of workflow.

The issue is that if the manager request documents it points TO address corectly to the Email-id of the applicant prescribed in the form,

Request Document tab uses forms adaptor to invoke the REQUEST DOCUMENT process in Grants Management automatically.

In this case the TO address recepient didn't receive Email from the manager who requires additional documents to proceed further,while if the manager wants to deny/notification it sends an email to the recepient correctly whom is the same To address recepient of Request Document process.

What i mean to say is for deny/notification the activity succeeds and for Request documents it fails.Notify Applicant also uses forms adaptor.

Kindly suggest me solutions to proceed further.

Thanks,

Tord

Ok, I think I follow you now, when the process is invoked through the process init form it failes because of a null field.

On the form, verify that the adaptor settings are correct on the form. Something like this:

And then dump the grant request folder you are using so we can see all the attributes (iapi32.exe, dump,c,<objectid>), include it in your reply.

And lastly, turn on debugging for forms adaptors in your log4j.properties on your application server where you deployed TaskSpace (WEB-INF/classes/log4j.properties), no restart required.

log4j.category.com.documentum.xforms.adaptor=DEBUG

Find the adaptor invocation there and copy that part into a reply here.

Hope it helps

Thanks

--Tord

kotteswaran

Hi Tord,

I have checked with the adaptor settings and remains same as you shown,

I did tried to dump the grant request folder with iapi32.exe,dump,c,0bde75d18002e122 it returns Null,

So i dumped as dump,c,0bde75d18002e122 and attached you the file.

I have turned on the Debugger in TaskSpace (WEB-INF/classes/log4j.properties),by appending

log4j.category.com.documentum.xforms.adaptor=DEBUG to log 4j.properties file.

I am not sure of Find the adaptor invocation there and copy that part into a reply here?

Hope you asked me the log file after making changes of debugger if i am correct.

Attached the taskspace.log file with this.

Kindly suggest me solutions on this.

Tord


I did tried to dump the grant request folder with  iapi32.exe,dump,c,0bde75d18002e122 it returns Null,
       So i dumped as dump,c,0bde75d18002e122 and attached you the file.

Yeah, what I meant was use iapi32 to dump the object with the command dump,c,<objectid> which you did. So we can see there that the content_email is filled in.

contact_email                   : kgovindan@localhost

Now, from the log file I can see that you have enabled debugging for adaptors which is good but you haven't tried to request documents so we can't actually see the behaviour of that adaptor. So keep this setting, and request for documents in the way that it fails and copy that log file here.

Specifically the rows that start with:

15:34:13,819 DEBUG [http-0.0.0.0-9080-9] com.documentum.xforms.adaptor -

But for the form template and adaptor we are interested in.What you sent was for the .CopyDataToObjectAttribute adaptor of the Grant Manager Task Form, as seen below

15:34:13,819 DEBUG [http-0.0.0.0-9080-9] com.documentum.xforms.adaptor - [Adaptor Debug Message]    ID: D<1309428253772>    Message: Adaptor executed successfully    Form Template Name: Grant Manager Task Form    Control: Owner    Adaptor Info:      - ID: .CopyDataToObjectAttribute

And not for the SendNotificationDataSourceAdaptor adaptor of the Grant Initiate Request Supporting Documents Process Form which is the one of interest.

Thanks

--Tord

kotteswaran

Hi Again,

Got your Point,

I tried to proceed with request document activity and could see the logs as attached,

Please have look on log and help me out

Tord

Hi,

If you look at the result of the adaptor invocation

<data>

<item>

</item>

</data>

You see that the from address is empty. And if you dump the user you are logged in as you'll notice that the user_address field is empty. So my guess is that that is the reason that the process fails.

Hope it helps

Thanks

--Tord

kotteswaran

Hi Tord,

I have given with the from email id and did tried to check with the request documents.

Message: Adaptor executed successfully
    Execution Time: <0> ms
    Output Data:
        <?xml version="1.0" encoding="UTF-8"?>
        <data><item><to><![CDATA[kgovindan@localhost]]></to><from><![CDATA[Jeeva@localhost]]></from><subject><![CDATA[Grant Request - Info]]></subject><caseNumber><![CDATA[1309441884561]]></caseNumber></item></data>

But i am not able receive Email in the inbox if i try with the request document automatic activity,while i tried with the debugger i could receive the email and can reply the mail also.

I have shown the process data mapping also.

Please suggest me to proceed further.

Tord

Hi again,

So are you saying that now the activity completes correctly but you don't receive the email?

If so, is there anything in the log file of the process engine and is there anything in the log of the email server?

And are kgovindan@localhost and Jeeva@localhost accounts on that email server?

Thanks

--Tord

kotteswaran

Hi Tord,

Not so,The activity is not processed I am not able to receive mail in the inbox if the manager Request for documents.

As in the adaptor debugger log <from> Jeeva@localhost who is the manager requires additional documents uses Request Documents Option in his Taskspace which invokes Request Document process,by this process the email has to be sent to the applicant kgovindan@localhost.

But this doesnt happen and no email is received in the applicant inbox.

What i inferred in the previous message is that if i do this manually from the debugger i could receive email but not in the case of automatic activity which is to be the preffered process.

Thanks...

Tord

Hi again,

Ok, lets summarize.

1. It works in the debugger, right? You've tested this now?

2. When you use the same values as in the debugger, but in a real grant case, it doesn't work?

If so, now that you provide values for all fields, could you provide the log file for the activity that fails?

Thanks

--Tord

kotteswaran

Hi Tord,

Please clearify me which logs should i send,

I tried with the real Grants case of Request Documents but i am not able to view any error message related to this activity,please suggest me how to proceed further.

In debugger i could receive mail and able to complete the process,

Also along with this I have one more request,As this is also with respest to email hope i can ask you in the same thread itself,I tried to initiate Grants management by using offline as option,i.e Receive Application via Email...If i can proceed this in the same thread i can send you the error message in the next post.

Thanks in Advance,

kotteswaran

Hi Tord,

In real grants case i am not able to view any error in BPS log or in BPM log,I filled in with the same values as i gave for Debugger.

But not able to proceed with the Request Document Activity.

Please help me out to proceed with this issue.

kotteswaran

Hi Tord,

Thanks for your reply,

Kindly help me out to fix this issue to initiate the process,

Tord

Hi again,

Let me just confirm where you are at.

Everything works in the debugger?
When triggered from within the grants management application with the exact same data the activity fails and nothing is written to the logs?
If you go into the Administration tab in TaskSpace and find your process instance, what is the reason that the activity fails there?

Thanks

--Tord

kotteswaran

Hi Tord,

1) In the debugger it works fine.

2) When triggered from within the grants management application with the exact same data the activity fails and no error message is written to the logs.

3) If you go into the Administration tab in TaskSpace and find your process instance, what is the reason that the activity fails there?

In Grants manager i have used only three roles,

Role Membership Username

grants_administrator form_user admin1

queue_manager

grants_manager form_user mgr1/mgr2/mgr3

queue_processor

grants_reviewer form_user reviewer1/reviewer2

In this roles i could see Administration tab only in admin1 user alone, but the user admin1can do the only the following operations:

view all grant requests that are rejected,pending,inreview,approved and denied.
Assign or reassign grant requesta to Grant manager.
View Worker performance,funding and grant trends Dashboards.

I am not able to view the inbox where i could find the failed task and its reason.

As i am new to Xcp please tell me where could i found the reason for the activty that fails.

Thanks in Advance,

Tord

And you do not even need to log into your specific application to go to the Administration tab.

Thanks

--Tord

kotteswaran

Hi Again,

Thanks for your kind reply,

I could login into ts_designer role and able to see the task which is stopped as shown in attachment.

But the activity shown resembles the mail send to applicant once the form is submitted stating form has been received and the grant request id.From this activity i could receive email in applicant inbox.I mean to say even it shows the task fails i am able to receive email and proceed with further activities.

In this case the content predefined in the process is send as email along with the request id.

But after this once the manager request documents only,applicant should be able to receive the email.Here the content is added on runtime when the manager sends for additional documents and this is not done.

Hope you can get my point..

Thanks,

Tord

Go to the Administration tab, and look at the process instance that failed and the details of the activity that failed.. Currently you are showing the inbox of the user you logged in with which is not showing any details regarding the failed activity.

--T

kotteswaran

Hi Tord,

I did checked with the process instance as as you said.

I could not interpret there the process (i.e) Request Documents which i want to check and the activity that fails.

Aas i said in my previous post it shows in send advanced notification which is mean to send email to applicant after submitting form.This was failed in process

instance,to my surprise i could receive the email of that activity with the same content provided in the process without any issues.

When i click Request Documents it points to other page as shown in attachment, there i have given subject and body for mail but no process was initiated and i could not see the failed instance in process instance.Is that process itself not initiated.

And along with this i have one more impotant issue to be fixed with high priority.As this is also with related to email, hope i can post here.I tried to initiate the Grants management using offline(email) as option by submitting odt form,but it shows cannot read xml content.If this can be posted here, i could provide logs else will create new thread.Please assist me on this issue also.

Thanks,

kotteswaran

Hi Tord,

Thanks for all your valuable reply,the issue for request document is not fixed yet.

If it is possible for you to assist me on the other issue which is similar to this kind of email activity which i have said in the previous post.

It is related with initiating Grants Management using offline mode(email) as option,

Thanks in Advance,
