Manually associate previously created forms with activities.

Hi Experts,

I had a process template and I hade created several forms for the activities in the template.Then I have made several changes to the template and now I can't validate it.It says the "Activity Name" has validation errors where the activity with that name even does not exist in the process any more.When I save the process with a different name the error has gone and now I can't see any forms.

Is there a way to fix that problem? How can I associate the previous forms with that process?

Find more posts tagged with

Note:

If there are Accepted Answers, those will be shown by default. You can switch to 'All Replies' by selecting the tab below.

Accepted answers

Miller-zzMST

Yes, you are right.

With the query posted by me in previous post you could link any activity (f.e. the Initiate activity) with the form.

~ Konstantin

All comments

Miller-zzMST

Hi,

run query like this
CREATE dm_relation OBJECT SET relation_name='dm_activity_form', SET parent_id='<your_process_id>', SET child_id='your_task_form_id', SET permanent_link=1;

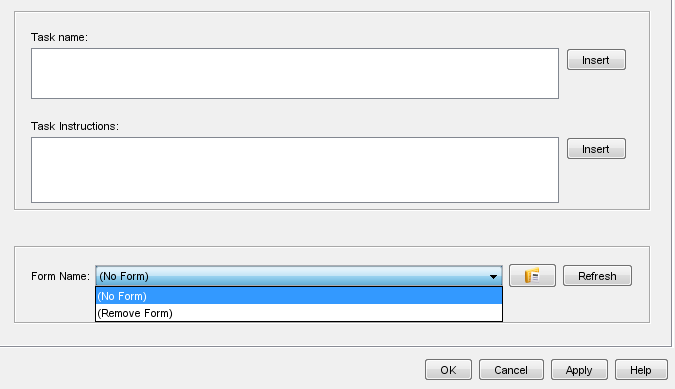

go to Process Builder, press Refresh button in Activity properties, bind form to activity and save process

Repeat steps for all Task forms.

~ Konstantin

Imran_Yusubov

Hi Konstantin,

Thank you for your reply.I have tried that query but no result.I guess I am doing something wrong.

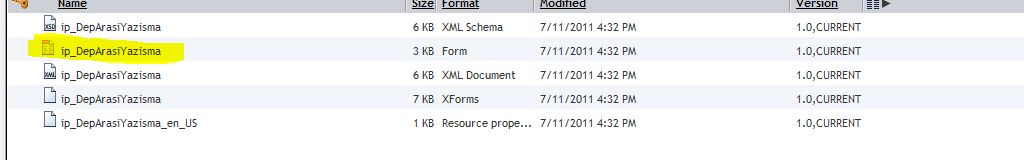

I am using id of the file above.Is it correct?

Miller-zzMST

I suggest you to run this query to get form's object id:

SELECT r_object_id, object_name FROM   dm_xfm_form

~ Konstantin

Imran_Yusubov

Hi,

A little correction.


CREATE dm_relation OBJECT SET relation_name='dm_process_form', SET parent_id='4b00000c800709df', SET child_id='0900000c80070ed2', SET permanent_link=1;

Thank you very much for the directions.

Miller-zzMST

Yes, you are right.

With the query posted by me in previous post you could link any activity (f.e. the Initiate activity) with the form.

~ Konstantin
