Email Inbound attachment mapping error

Andre Machado

Hi friends,

I have created "Email Inbound Initiate" activity with these settings:

Preferred MIME Type: text/plain

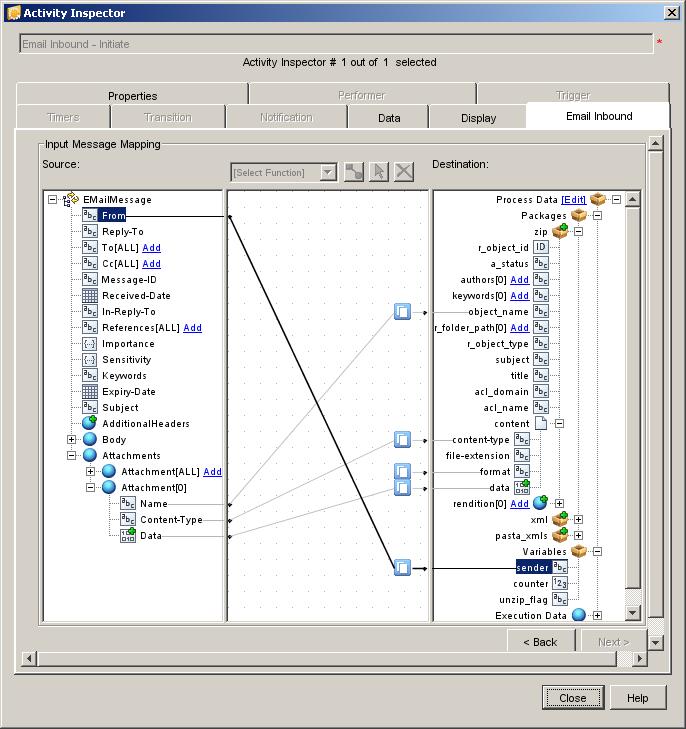

Message mapping:

The problem is:

It is not mapping the attachment[0]. So it creates a pachage with an empty file.

See the bps log below:

2012-04-17 11:00:04,890 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - Transaction started
2012-04-17 11:00:04,890 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - Preparing to create a workflow
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - Function: Copy
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - From Rule:
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - /EMailMessage/Attachments/Attachment[0]/Name,
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - From Node Value : null
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - To Rule:
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - /Process Data/Packages/zip/object_name
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - Function: Copy
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - From Rule:
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - /EMailMessage/Attachments/Attachment[0]/Content-Type,
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - From Node Value : null
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - To Rule:
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - /Process Data/Packages/zip/content/content-type
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - Function: Copy
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - From Rule:
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - "zip",
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - From Node Value : zip
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - To Rule:
2012-04-17 11:00:06,171 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - /Process Data/Packages/zip/content/format
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - Function: Copy
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - From Rule:
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - /EMailMessage/Attachments/Attachment[0]/Data,
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - From Node Value : null
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - To Rule:
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - /Process Data/Packages/zip/content/data
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - Function: Copy
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - From Rule:
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - /EMailMessage/From,
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - From Node Value : dmadmin <dmadmin@brsplab200>
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - To Rule:
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.email.inbound.runtime.EmailTask] - /Process Data/Variables/sender
2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.services.DfLoggerEventListener] - Input Message for process id - 4b0027118001b96d: activityId - 4c0027118001b979 workflowid - 4d0027118000255c: workitemid - 4d0027118000255c: message - <?xml version="1.0"?>
<EMailMessage>
    <From>dmadmin <dmadmin@brsplab200></From>
    <Reply-To>dmadmin <dmadmin@brsplab200></Reply-To>
    <To>importacao@brsplab200</To>
    <Message-ID><66892DB55D434632859DA0CDB58F68EF@server53></Message-ID>
    <Subject>teste zip4</Subject>
    <Return-Path><dmadmin@brsplab200></Return-Path>
    <Delivered-To>importacao@brsplab200</Delivered-To>
    <Received><![CDATA[from mi164724.petrobras.biz ([10.18.116.11])
          by BRSPLAB200 (JAMES SMTP Server 2.3.1) with SMTP ID 23
          for <importacao@brsplab200>;
          Tue, 17 Apr 2012 10:59:21 -0300 (BRT)]]></Received>
    <Date>Tue, 17 Apr 2012 10:59:19 -0300</Date>
    <X-Priority>3</X-Priority>
    <X-MSMail-Priority>Normal</X-MSMail-Priority>
    <X-Mailer>Microsoft Outlook Express 6.00.3790.3959</X-Mailer>
    <X-MimeOLE>Produced By Microsoft MimeOLE V6.00.3790.3959</X-MimeOLE>
    <X-RFC2646>Format=Flowed; Original</X-RFC2646>
    <Body>
        <Content-Type>text/plain</Content-Type>
        <Data>C:\Documents and Settings\dmadmin\message_files\a4f2546e-c4b2-44a9-844d-97ee6c1d40bb.dat</Data>
    </Body>
    <Attachments/>
    <SERIALIZED_EMAIL_FILE_PATH>C:\Documents and Settings\dmadmin\message_files\c322f7db-f11d-4cbe-951b-5edb45578795.eml</SERIALIZED_EMAIL_FILE_PATH>
</EMailMessage>

2012-04-17 11:00:06,406 DEBUG [pool-4-thread-1] [com.documentum.bps.inbound.actionHandler.DocbaseInboundActionHandler] - Mapping rules executed for worklow: 4d0027118000255c

I am using mail client Outlook Express 6 and mail server James SMTP Server 2.3.1

Any help to solve this problem?

Thanks.

Find more posts tagged with

Comments

DCTM_Guru

What object type have you defined zip package to be? Also, what value have you specified for format?

Andre Machado

Hi Johnny,

I have defined a subtype of dm_document.

I have specified zip for format.

I am using Documentum 6.7 sp1.

It creates the object with the correct type and format(zip file), but without content and without object_name.

As you can see the log, the problem is that the attachment is not contained in the field <Attachments>.

I opened the file C:\Documents and Settings\dmadmin\message_files\a4f2546e-c4b2-44a9-844d-97ee6c1d40bb.dat and there is the e-mail message and there is the attachment in this .dat file.

I think the correct behavior is the attachment contained in Attachments tag.

Is there any configuration to change?

DCTM_Guru

Got it. What I have done in the past is to map the email attachments (left side) with package attachments (right side) in this activity. In a subsequent Link to Folder activity, I moved the attachments to case folder. Once you have the attachments linked to external object, you should be able to map it back to package.

Andre Machado

I have changed the mapping to this configuration:

The problem persists: It creates the object without content and without object_name.

DCTM_Guru

Remove the format mapping

Andre Machado

I have changed the classpath of the machine and it worked.

I think it was using an incorrect version of some .jar or .class to do the e-mail mapping.
