Documentum Job doesn't run

Vinod_Rajendra

Hi Friends.

We have a job which calls java method which inturn executes a DQL query to delete records from a dctm object.

The job fails throwing the below error.

If I just run the method (ie., com.image.RunMethod) it runs perfectly without any errors.

Can anybody please help me on this?

Find more posts tagged with

Documentum

Comments

christopher.imes

Please consider moving this question as-is (no need to recreate) to the proper forum for maximum visibility. Questions written to the users' own "Discussions" space don't get the same amount of attention and can go unanswered for a long time.

You can do so by selecting "Move" under ACTIONS along the upper-right. Then search for: "Documentum" and select the very first result that comes up. This will relocate it to the Developer Network subspace of the Documentum community.

For further guidance on engaging with the communities for Documentum and related products, please refer to the

IIG Communities Getting Started Guide.

Vinod_Rajendra

Thanks Chris. I moved the question to "Documentum" forum. Hope somebody answers this.

CláudioGil

Hi,

You do not provide much information so I have to ask:

Have you retrieved the full error message from the logs?
When you say you can run the method directly do you mean you can run the dm_method using DA our you can run the Java class directly in your environment?

Regards,

Cláudio

Vinod_Rajendra

Hi Claudio,

Glad you replied.

I do get an error message like this. but this doesn't seem to belong to my problem.

2013-10-18 00:14:49,084 ERROR [org.apache.catalina.core.ContainerBase] Servlet.service() for servlet DoMethod threw exception

java.lang.ClassNotFoundException: com.documentum.bpm.IDfWorkitemEx

at java.net.URLClassLoader$1.run(URLClassLoader.java:200)

at java.security.AccessController.doPrivileged(Native Method)

at java.net.URLClassLoader.findClass(URLClassLoader.java:188)

at com.documentum.fc.client.impl.bof.classmgmt.URLClassLoaderEx.findClass(URLClassLoaderEx.java:49)

at com.documentum.fc.client.impl.bof.classmgmt.DelayedDelegationClassLoader.findClass(DelayedDelegationClassLoader.java:241)

at com.documentum.fc.client.impl.bof.classmgmt.AbstractTransformingClassLoader.findClass(AbstractTransformingClassLoader.java:119)

at com.documentum.fc.client.impl.bof.classmgmt.DelayedDelegationClassLoader.loadClass(DelayedDelegationClassLoader.java:147)

at com.documentum.fc.client.impl.bof.classmgmt.AbstractTransformingClassLoader.loadClass(AbstractTransformingClassLoader.java:66)

at java.lang.ClassLoader.loadClass(ClassLoader.java:248)

at java.lang.ClassLoader.loadClassInternal(ClassLoader.java:316)

at java.lang.Class.getDeclaredConstructors0(Native Method)

at java.lang.Class.privateGetDeclaredConstructors(Class.java:2389)

at java.lang.Class.getConstructor0(Class.java:2699)

at java.lang.Class.newInstance0(Class.java:326)

at java.lang.Class.newInstance(Class.java:308)

at com.documentum.fc.client.impl.objectmanager.AbstractPersistentObjectFactory.newObjectInstance(AbstractPersistentObjectFactory.java:58)

at com.documentum.fc.client.impl.objectmanager.PObjectFactoryWithAspects.makeObject(PObjectFactoryWithAspects.java:51)

at com.documentum.fc.client.impl.objectmanager.PersistentObjectManager.getObjectFromServer(PersistentObjectManager.java:356)

at com.documentum.fc.client.impl.objectmanager.PersistentObjectManager.getObject(PersistentObjectManager.java:311)

at com.documentum.fc.client.impl.session.Session.getObject(Session.java:844)

at com.documentum.fc.client.impl.session.Session.getObjectByQualificationEx(Session.java:1025)

at com.documentum.fc.client.impl.session.Session.getObjectByQualification(Session.java:1003)

at com.documentum.fc.client.impl.session.SessionHandle.getObjectByQualification(SessionHandle.java:685)

at com.documentum.services.workqueue.WorkQueueUtil.getObjectByQualification(Unknown Source)

at com.documentum.services.workqueue.WorkQueueUtil.getWorkQueue(Unknown Source)

at com.documentum.services.workqueue.WorkQueueMgmt.getWorkQueue(Unknown Source)

at com.documentum.server.impl.method.workflow.qm.ThresholdNotification.processWorkQueues(ThresholdNotification.java:131)

at com.documentum.server.impl.method.workflow.qm.ThresholdNotification.execute(ThresholdNotification.java:77)

at com.documentum.mthdservlet.DfMethodRunner.runIt(Unknown Source)

at com.documentum.mthdservlet.AMethodRunner.runAndReturnStatus(Unknown Source)

at com.documentum.mthdservlet.DoMethod.invokeMethod(Unknown Source)

at com.documentum.mthdservlet.DoMethod.doPost(Unknown Source)

at javax.servlet.http.HttpServlet.service(HttpServlet.java:637)

at javax.servlet.http.HttpServlet.service(HttpServlet.java:717)

at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:290)

at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)

at org.jboss.web.tomcat.filters.ReplyHeaderFilter.doFilter(ReplyHeaderFilter.java:96)

at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:235)

at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:206)

at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:230)

at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:173)

at org.jboss.web.tomcat.security.SecurityAssociationValve.invoke(SecurityAssociationValve.java:182)

at org.jboss.web.tomcat.security.JaccContextValve.invoke(JaccContextValve.java:84)

at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:128)

at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:104)

at org.jboss.web.tomcat.service.jca.CachedConnectionValve.invoke(CachedConnectionValve.java:157)

at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:109)

at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:241)

at org.apache.coyote.http11.Http11Processor.process(Http11Processor.java:844)

at org.apache.coyote.http11.Http11Protocol$Http11ConnectionHandler.process(Http11Protocol.java:583)

at org.apache.tomcat.util.net.JIoEndpoint$Worker.run(JIoEndpoint.java:447)

at java.lang.Thread.run(Thread.java:619)

2. Its runs successfully when I run the method from DA.

Thanks,

Vinod R

PanfilovAB


 I do get an error message like this. but this doesn't seem to belong to my problem.
2013-10-18 00:14:49,084 ERROR [org.apache.catalina.core.ContainerBase] Servlet.service() for servlet DoMethod threw exception
java.lang.ClassNotFoundException: com.documentum.bpm.IDfWorkitemEx
at java.net.URLClassLoader$1.run(URLClassLoader.java:200)
at java.security.AccessController.doPrivileged(Native Method)
at java.net.URLClassLoader.findClass(URLClassLoader.java:188)

It's a known bug. Copy bpm_infra.jar, castor-1.1-xml.jar, commons-jxpath-1.2.jar from DctmServer_MethodServer/deploy/bpm.ear/lib to DctmServer_MethodServer/deploy/ServerApps.ear/lib

CláudioGil

Hello,

The error java.lang.ClassNotFoundException: com.documentum.bpm.IDfWorkitemEx is associated with missing bpm_infra.jar in the classpath. That jar and the required infra-structure are provided by the Business Process Engine installation.

I cannot explain the difference between the job execution and the method execution through DA. Maybe, you need to copy the the bpm_infra.jar and dependencies from the BPM side to the ServerApps (app running methods in MethodServer). But, if that is the case, that would be a bug in Method Server installation.

Regards,

Cláudio

PanfilovAB

another solution is set a_special_app=Workflow for corresponding method.

Vinod_Rajendra

Replaced the bpm_infra.jar file and copied bpm_infra.jar, castor-1.1-xml.jar, commons-jxpath-1.2.jar from DctmServer_MethodServer/deploy/bpm.ear/lib to DctmServer_MethodServer/deploy/ServerApps.ear/lib

Now I do not see the erros in Server.log. Thanks Claudio and PanfilovAB. ☺

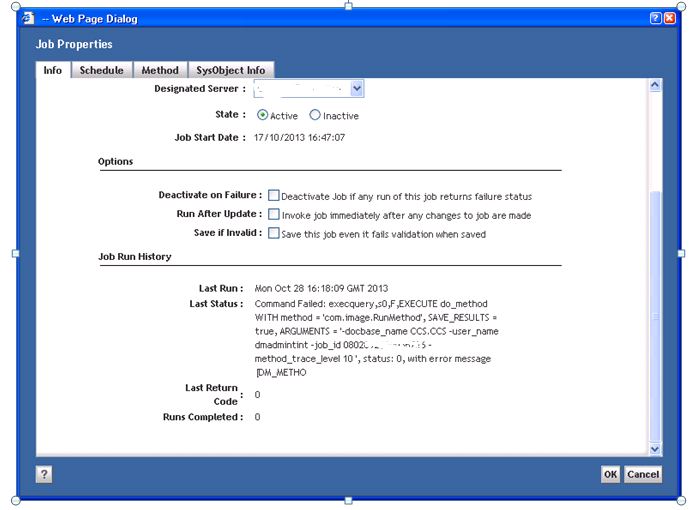

But still the job doesn.’t run. Throws the same error as mentioned in the above screen shot.

Regards,

Vinod Rajendra

PanfilovAB

That only means that error your posted previously is not related to your problem. Is it a custom job? Could you show code?

Vinod_Rajendra

Voila…!!

I tried below and it didn’t work. But this gave me the hint.

Run as server was “unchecked” for the method.

I “checked” it, rerun the job, and works fine.

Phew..!!

Regards,

Vinod Rajendra
